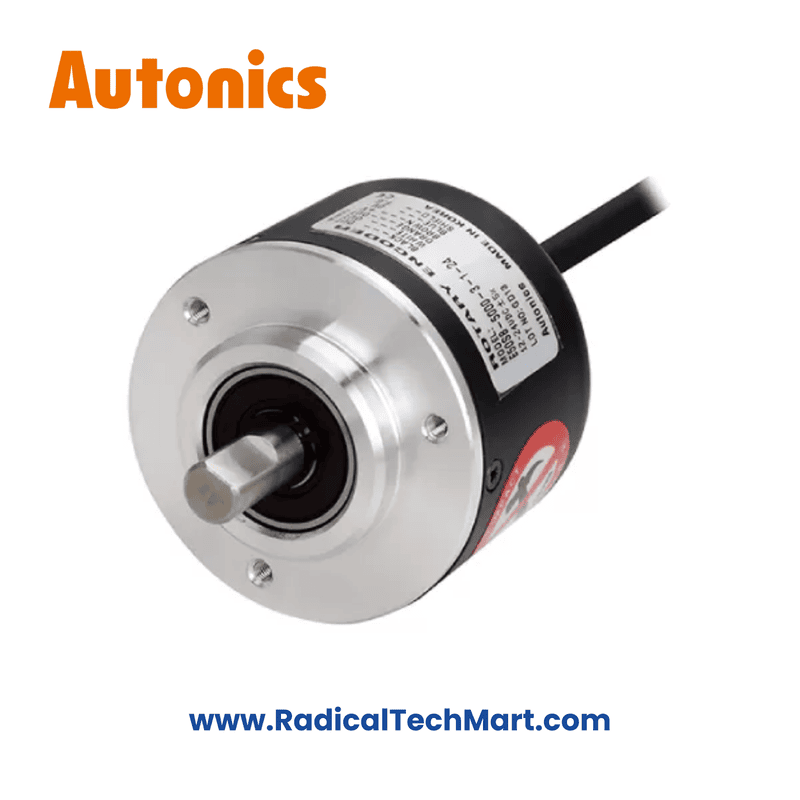

E50S8-3600-6-L-5 Autonics Rotary Encoder
Non-returnable
₹9,026.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | E50S8-3600-6-L-5 |
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 3600P/R |
| Output phase | A,  , B,  , Z,  |
| Control output | Line Driver |
| Power supply | 5VDC ±5%(ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø8mm coupling, Bracket |
| Weight | Approx. 363g(approx. 275g) |
